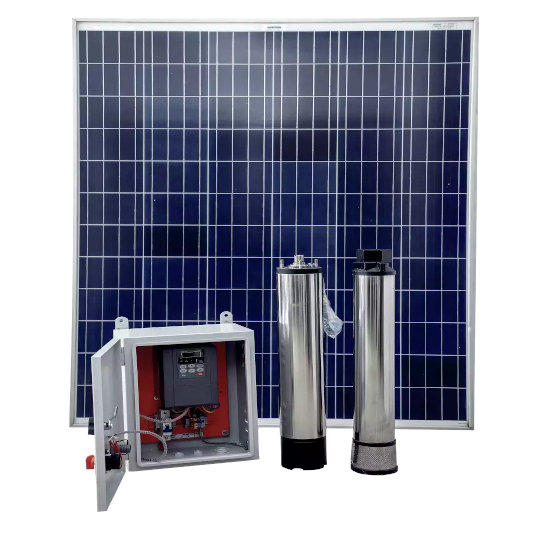

AC solar submersible pumps are electrically powered pumps that are designed to be submerged in a liquid, typically water, and are powered by alternating current (AC). Electricity is generated by solar panel which is further converted into AC with the help of an inverter.
One of the main advantages of AC solar submersible pumps is their lower cost as compared to DC pumps. Since they are powered by solar energy, they do not require grid power or fossil fuels, reducing energy costs and carbon emissions. Further, submersible pumps are submerged in the liquid being pumped and push fluid to the surface; there is no need for the pump to lift the water, which reduces the amount of work required by the pump. Thus they are highly efficient and provide high flow rates.
AC solar submersible pumps are also designed to be highly durable and long-lasting. The waterproof housing and sealed motor prevent water from entering the pump, reducing the risk of damage and increasing the lifespan of the pump. Additionally, AC solar submersible pumps are typically smaller and more compact than other types of pumps, making them ideal for use in confined spaces or in applications where space is limited.
Model | V4 Series | V6 Series |
---|---|---|
RPM | 2800 | 2800 |
Impeller | SS 410 | SS 410 |
Pump Bearing Bush | Leaded Bronze | Leaded Bronze |
Pump Shaft | SS 410 | SS 304 |
Suction Bracket | SS 410 | SS 410 |
Pump Hardware | SS 304 | SS 304 |
Motor Shaft | LTB 5 Grade | LTB 5 Grade |
Motor Bearing Bush | SS 410 | SS 304 |
Thrust Bearing | Tilting Bearing | Tilting Bearing |
Lower & Upper Housing | SS 410 | SS 410 |
Stator Shell | SS 304 | SS 304 |
Winding Wire | Copper | Copper |
Motor Hardware | SS 304 | SS 304 |
